Dc Servo Motor

Printed Winding DC Servo Motor

1DY-E3
Custom, OEM, STO, product features: DC servo motor with printed winding has the advantages of small axial size, high power volume ratio, wide speed regulation range, high linearity, small moment of inertia, large output torque, smooth operation, advanced and reliable technical performance.

Consult

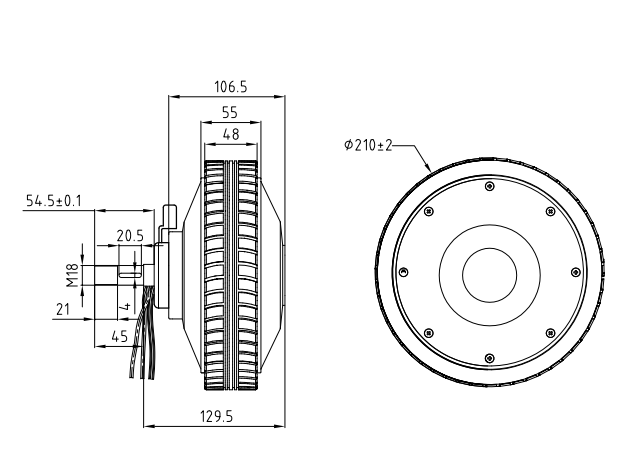

Features Technical Indicators Overall Dimension

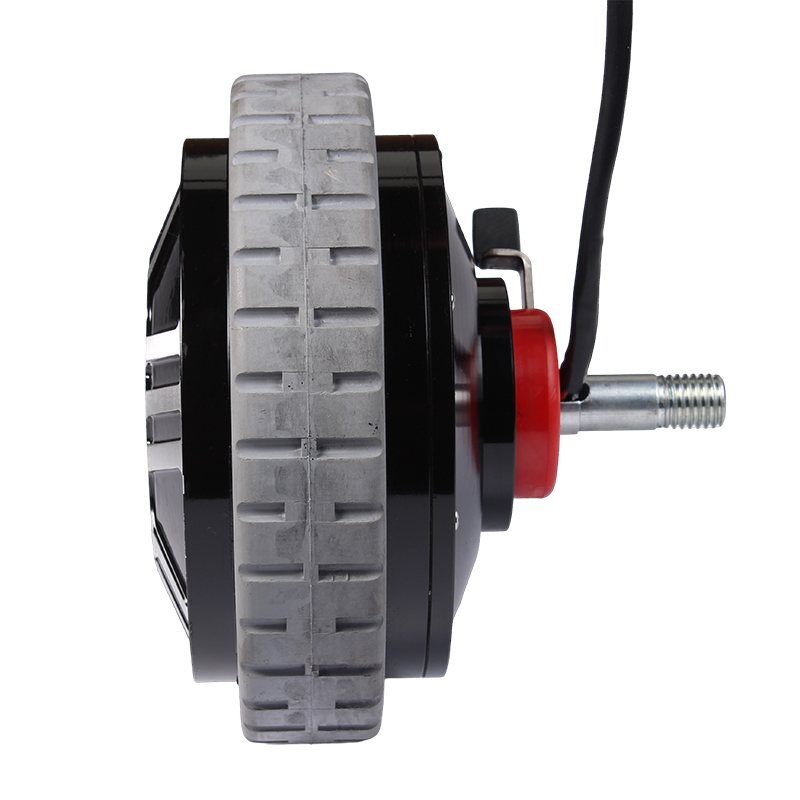

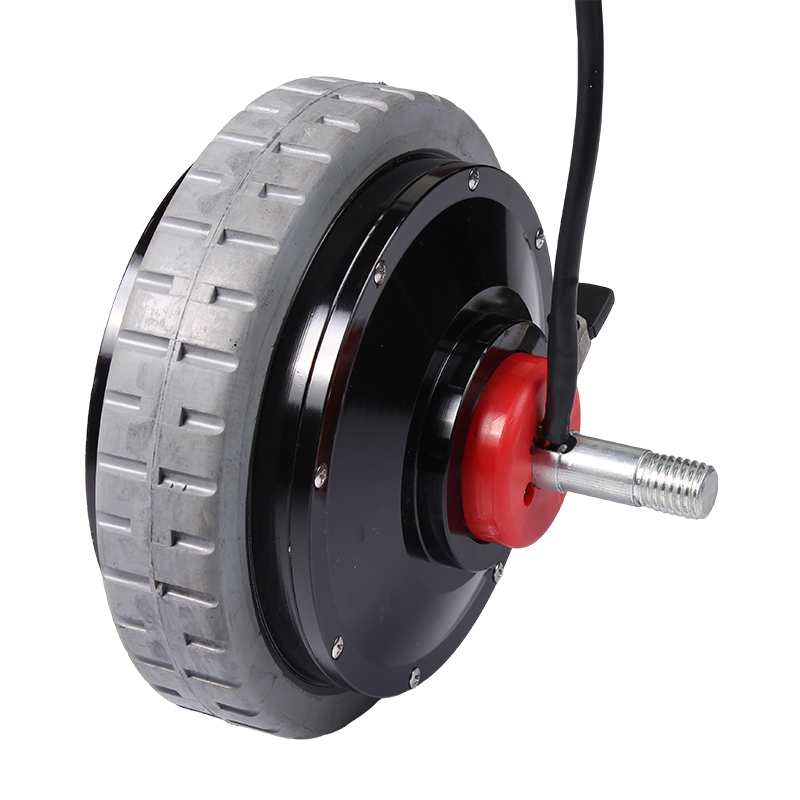

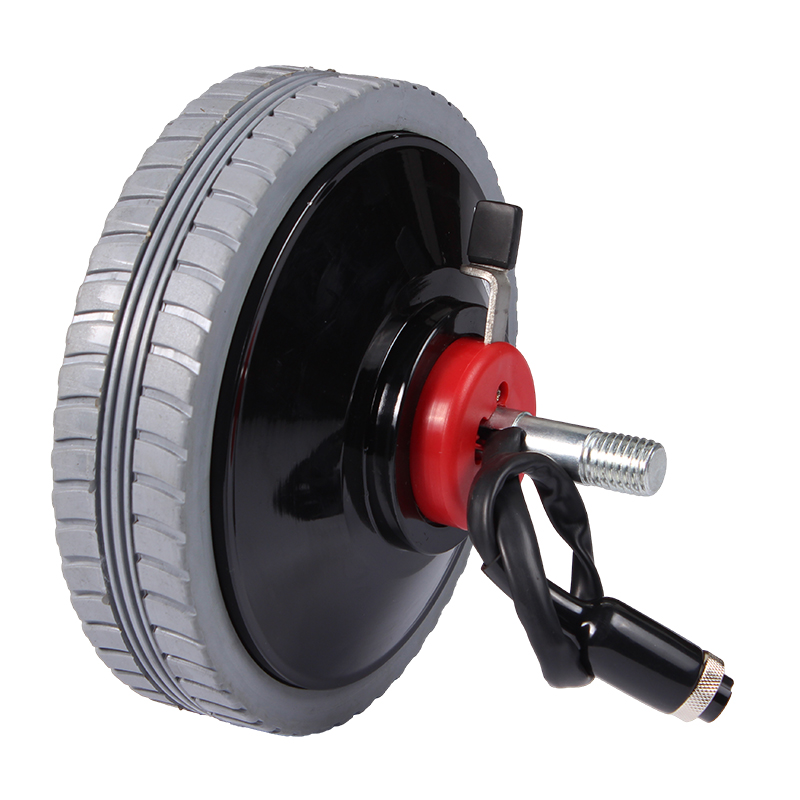

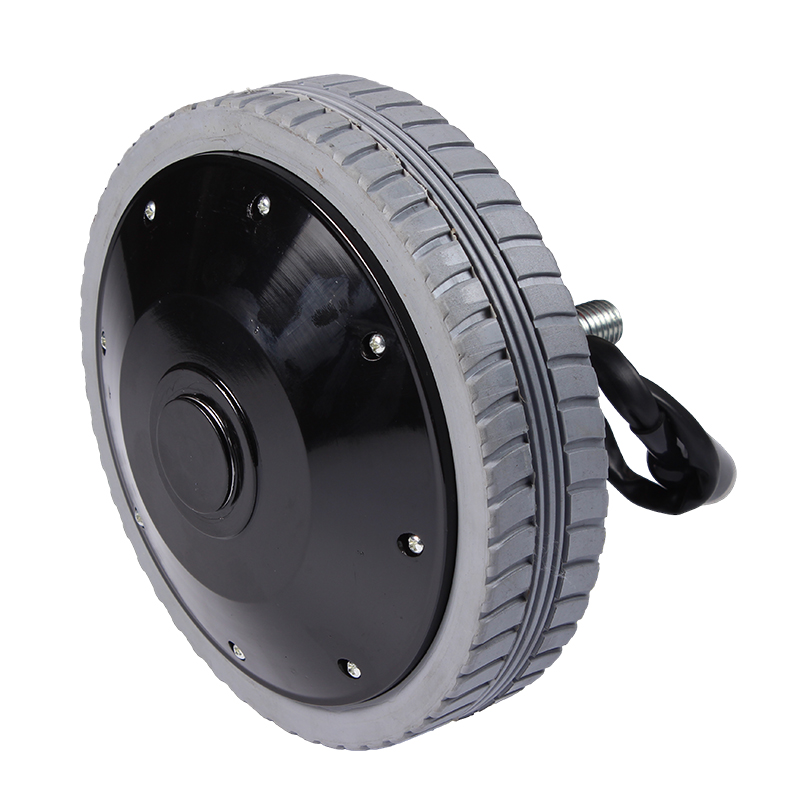

Wheel hub motor	Wheel color:	Black
	No-load speed:	120 r/min
	No-load noise:	<60dB(positive)<65dB(negative)
	No-load current:	<1.5A
	rated power:	200 W
	Rated current:	≤13A
	Rated torque:	20.0 N.m
	Rated speed:	95 r/min
Electromagnetic brake	Voltage:	24V
	Current:	1.2A @24V
	Braking torque:	≥30 N.m

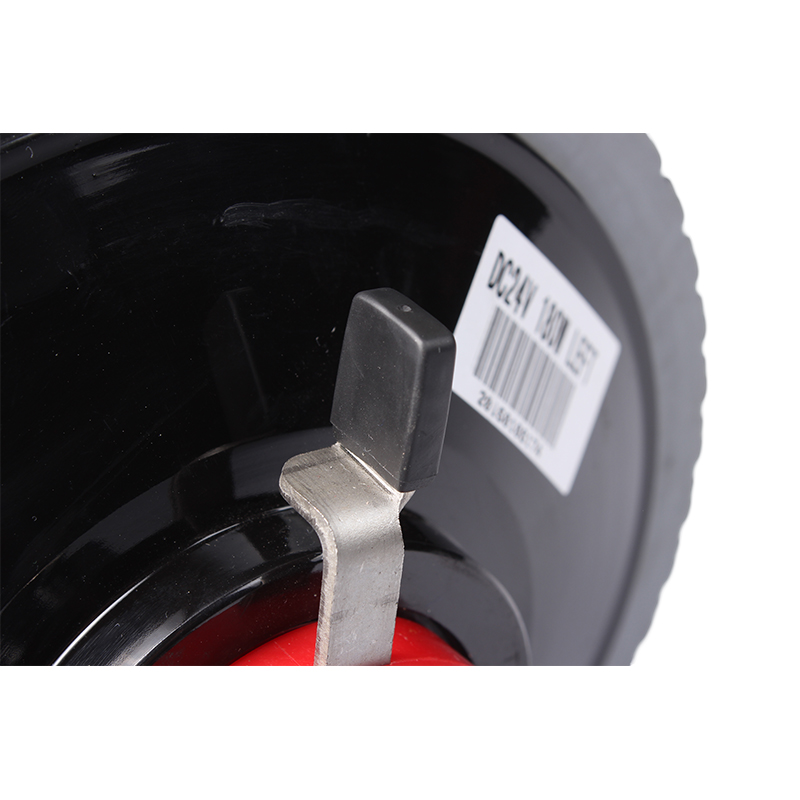

	Manual clutch:	Bring your own
Outlet requirements	Motor line model:	1015-16AWG
	Right motor cable length:	450mm±5mm
	Left motor cable length:	620mm±5mm

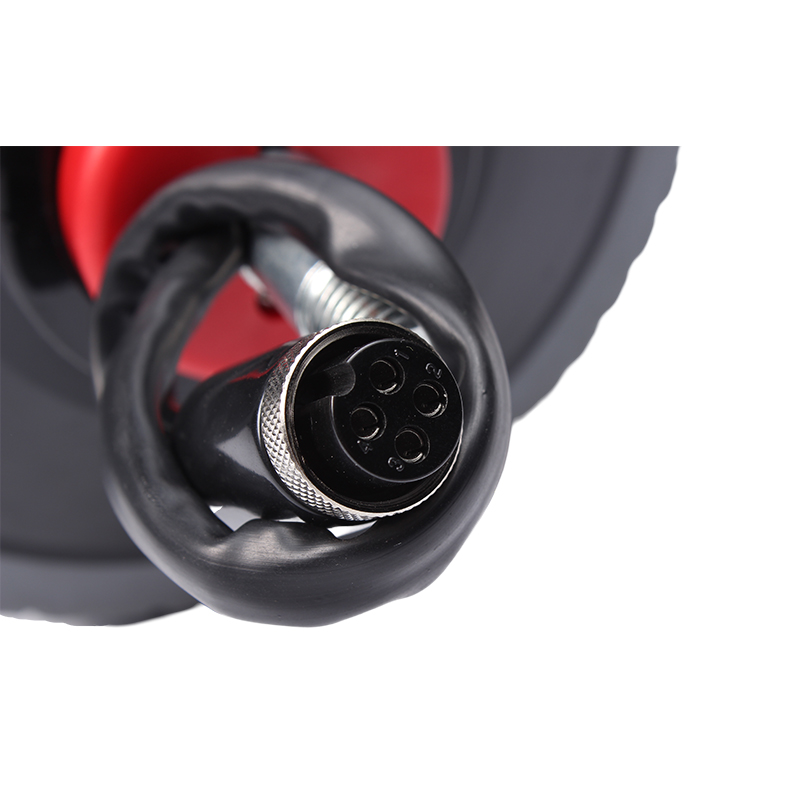

	Terminal Model：
	Socket specifications:	Red Star VH-4Y (left motor white) (right motor red)
