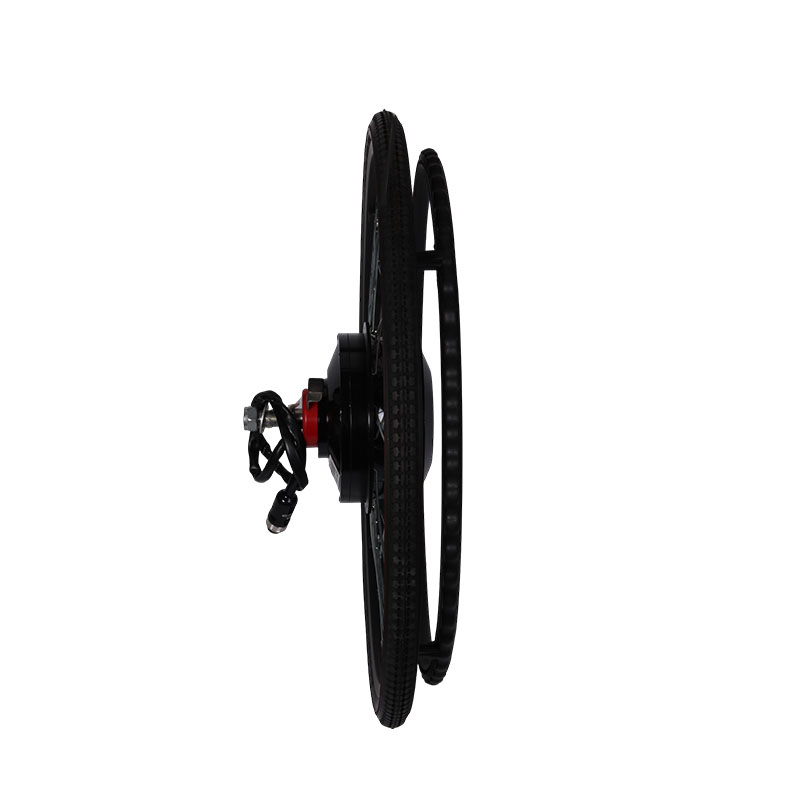

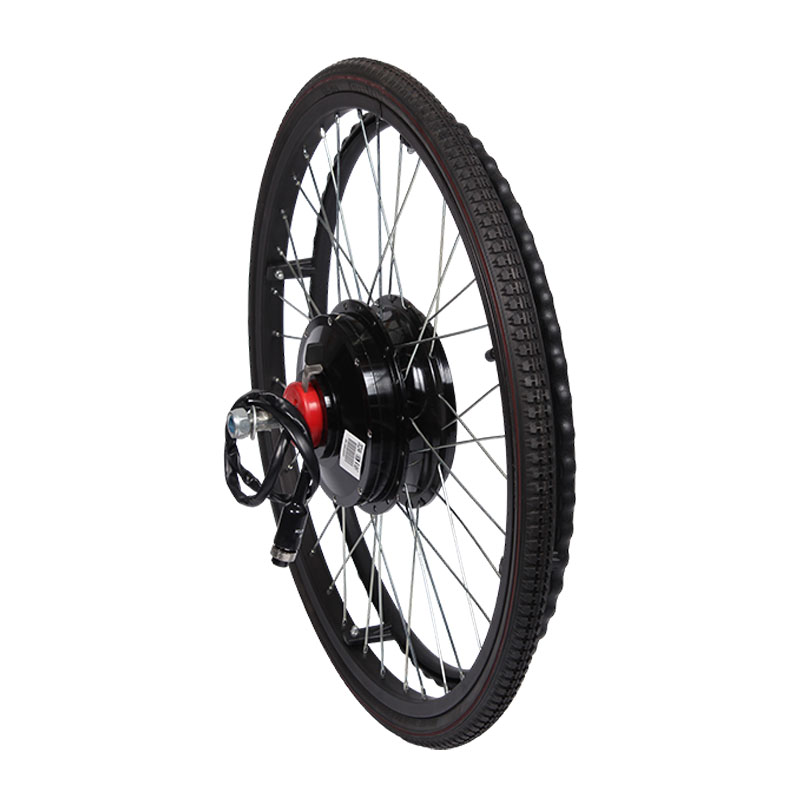

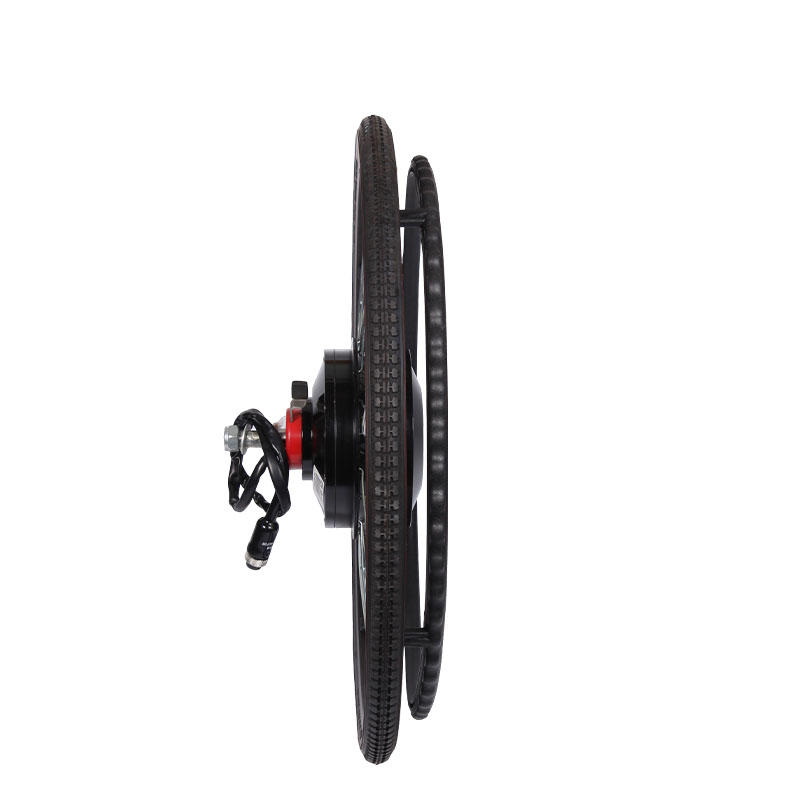

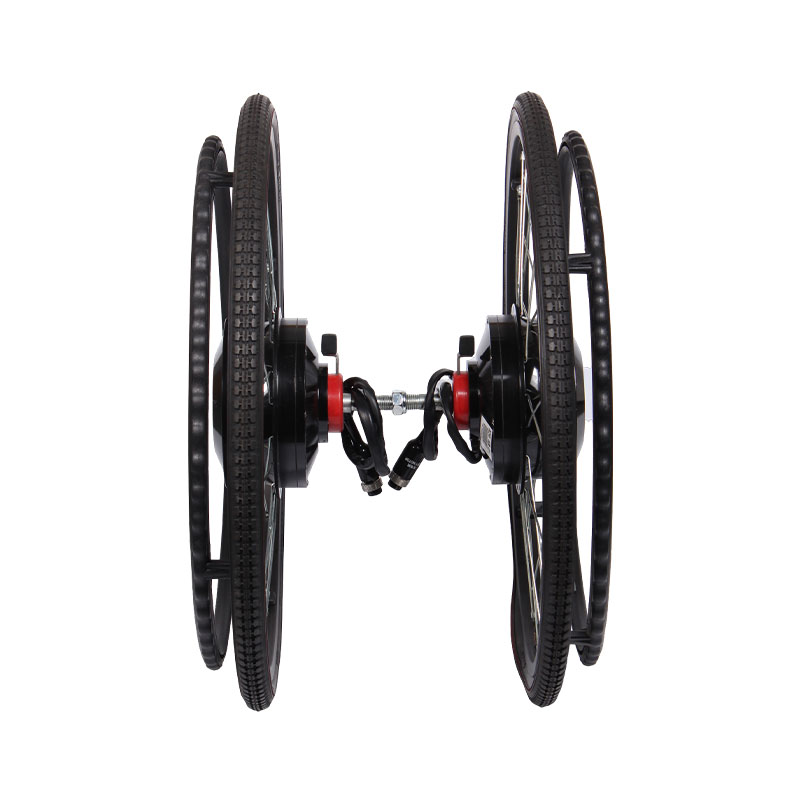

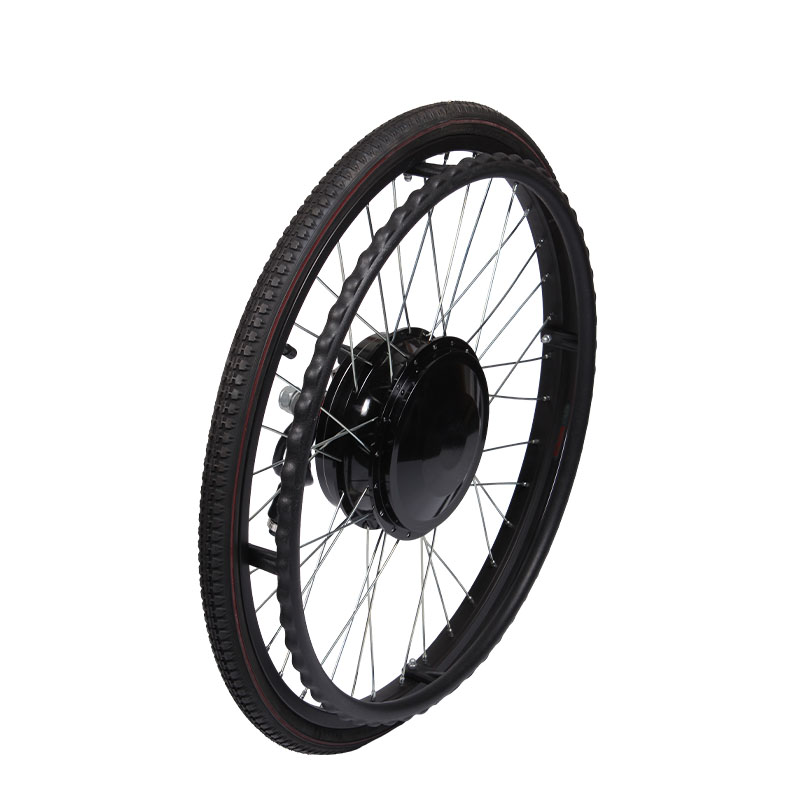

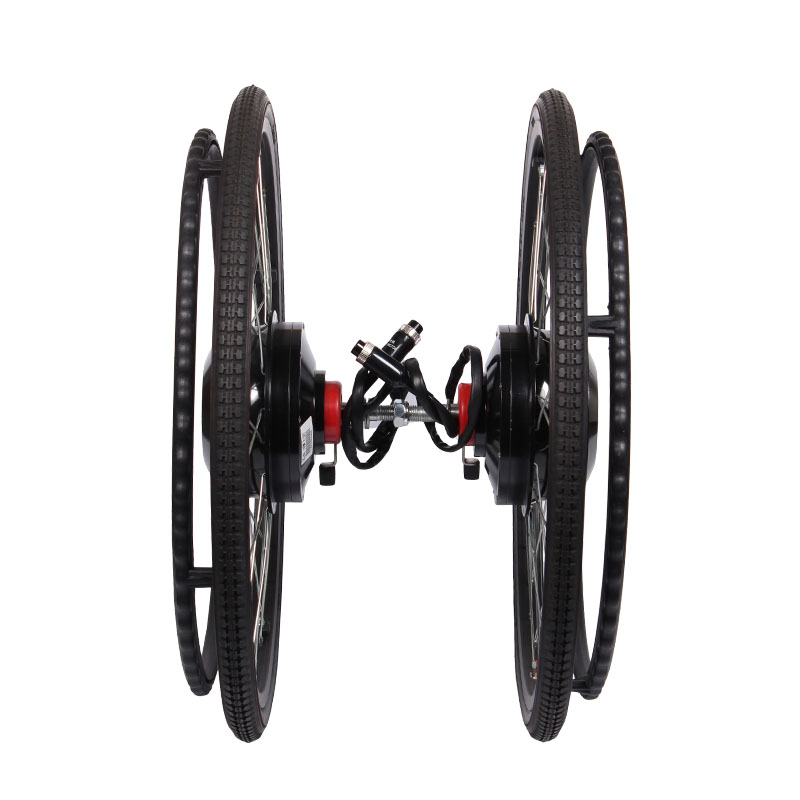

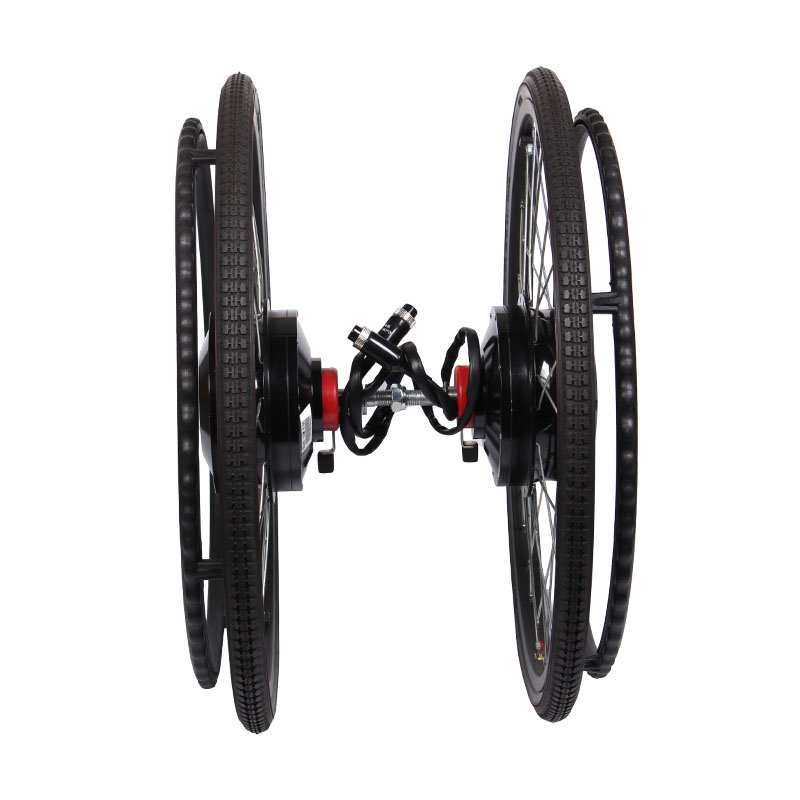

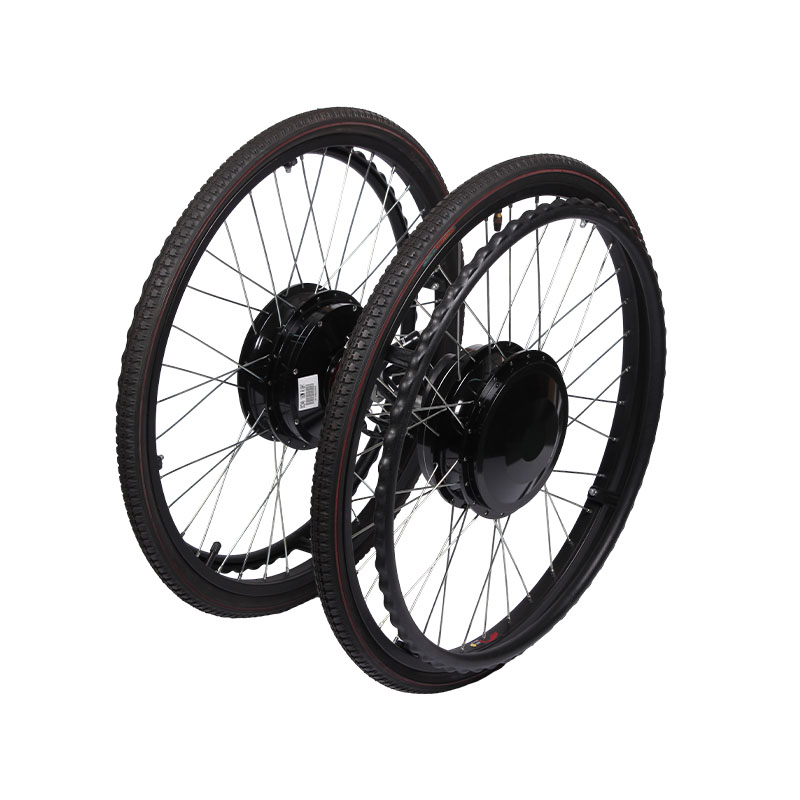

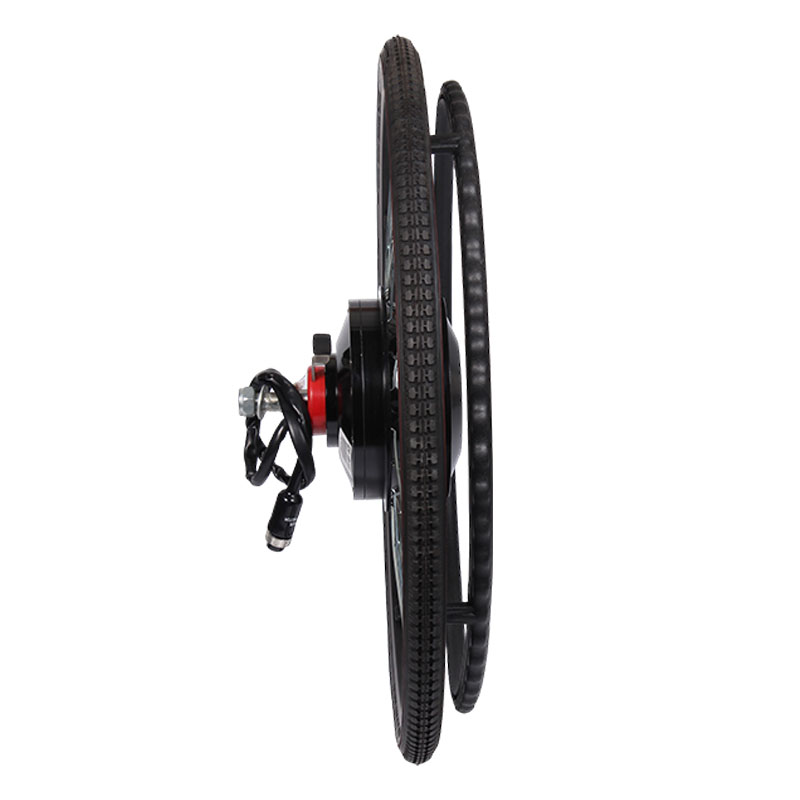

6DY-A6
Custom, OEM, STO, product features: compact structure, equipped with its own gearbox. A built-in electromagnetic braking system is included as standard for high torque output at low speeds, ensuring quick response starts and consistently high torque.

Consult

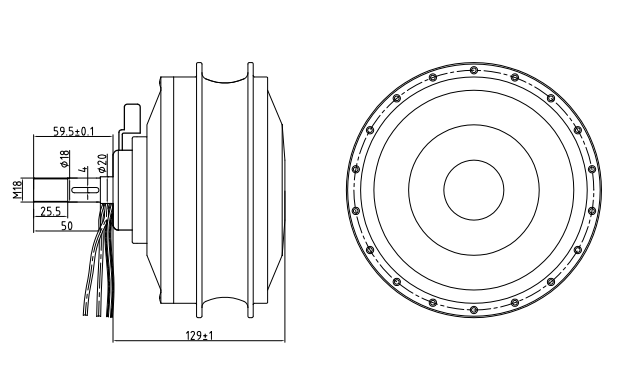

Features Technical Indicators Overall Dimension

Wheel hub motor	Hub color:	Black
	No-load speed:	60 r/min
	No-load noise:	<60dB (positive)<65dB (negative)
	No-load current:	<1.5A
	Rated power:	200 W
	Rated current:	≤6A
	Rated torque:	30.0 N.m
	Rated speed:	50r/min
Electromagnetic brake	Voltage:	24V
	Current:	1.2A @24V
	Brake torque:	≥30 N.m
	Manual clutch:	Built-in
Line out requirements	Motor line model:	1015-16AWG
	Right motor line length:	Customized
	Left motor line length:	Customized
	Terminal model:
	Socket specification:
