Dc Servo Motor

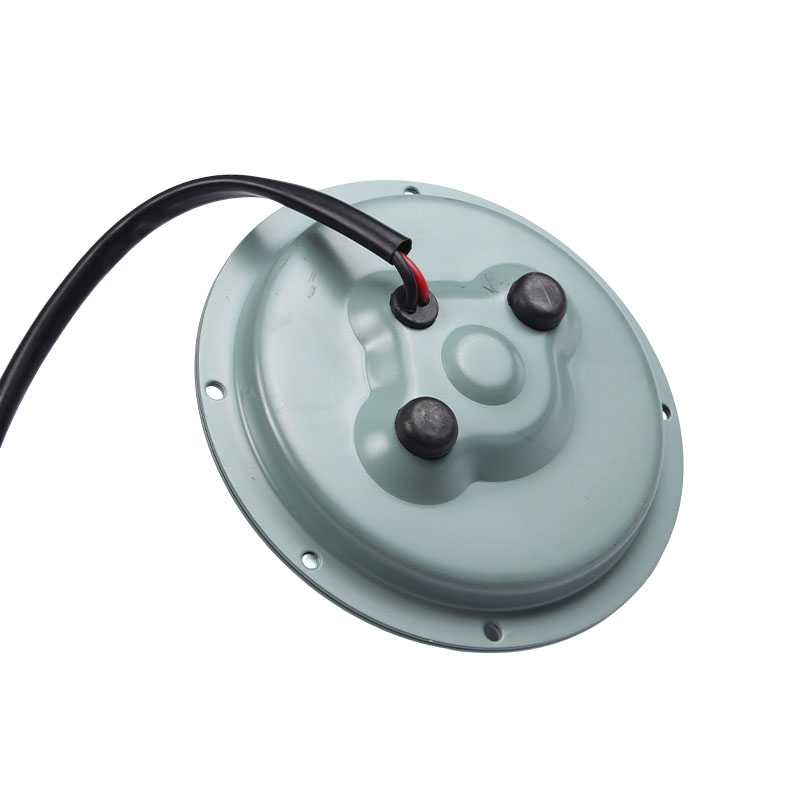

Printed Winding DC Servo Motor

120SN01-D
Custom, OEM, STO, product features: DC servo motor with printed winding has the advantages of small axial size, high power volume ratio, wide speed regulation range, high linearity, small moment of inertia, large output torque, smooth operation, advanced and reliable technical performance.

Consult

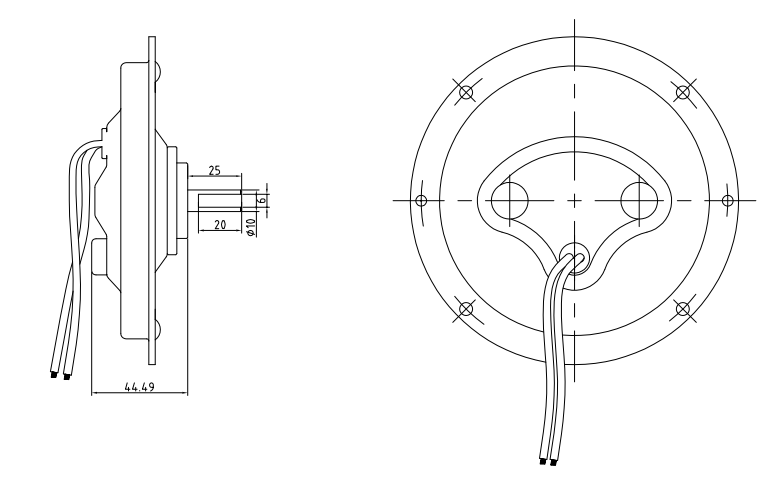

Features Technical Indicators Overall Dimension

Rated data	1) No-load speed	5000r/min
	2) No-load noise	<60dB(positive)<65dB(reverse)
	3) No-load current	<1.7A
	4) Rated voltage	DC24V
	5) Rated power	90W
	6) Rated current	5.0A
	7) Rated torque	0.2N.m
	8) Rated speed	4300r/min
	9) Electric efficiency	>80%
